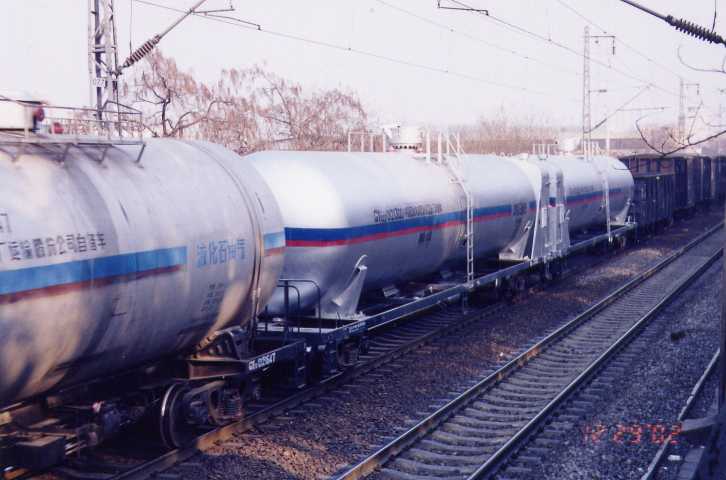

GH70K tank wagon
GH70K tank wagon
GH70K ethanol tank wagon is used to load and transport enthanol by up loading and unloading. This wagon is not equipped with centre sill. The tank body is a fishellied full weld structure consisting of five barrels and two standard elliptical ends. A manhole is set on the top of the tank and aliquid trap at the bottom. The coupler and coupler yoke are of 13A in C-level or E-level steel. The buffer is of MT-3 type. The braking system has 120 type control valve, KZW-A bare weight wagon automatic regulating equipment, Φ254*254 integral spinning sealed type brake cylinder, ST-250 bidirectional brake shoe slack adjuster, stainless steel braking fitting and pipe system and NSW hand brake. The bogie is K2 type.
Main technical parameters
| Loading capacity(t) | 56
|
| Tare weight(t) | <21
|
| Total capacity of tank(m3? | 72.9
|
| Effective capacity of the tank (m3) | 69
|
| Operating pressure of the tank(Mpa) | 0.15
|
| Total dimension(mm) | 11988*3220*4413 |
| Commercial operation speed(km/h) | 120
|
