G17K viscous oil tank wagon

G17K viscous oil tank wagon

G17K viscous oil tank wagon is used to load and tansport crude oil, heavy oil, lubricating oil and other general viscous oil media. It is uploading and down unloading four-shaft axle railway tank wagon with heating device. G17 viscous oil tank wagon can maintain pressure stabilization within the tank, meet the requirements from the operation maintenance personnerl entering the tank, and heating up when unloading in the cold condition.

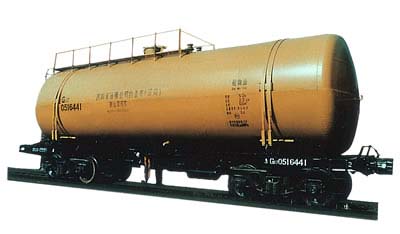

G17K viscous oil tank railway wagon

Main technical parameters

Loading capacity(t)
57
Tare weight(t)
22.8
Coefficient of tare weight(t)
0.40
Total capacity of tank(m3?
62
Effective capacity of the tank (m3)
60
Ratio of tank empty volume to effective volume
3.33%
Operating pressure of the tank(Mpa)
0.15
Load per meter of track(t/m)
6.66
Axel load(t)
19.97
Commercial operating speed(km/h)
120
Braking ratio(empty)
28.9%
Braking ratio(loaded)
18.1%
Environment tempeature for operation(c)
-40c - +50c
Length of the wagon(mm)
11988
Length between bogie pivot centers(mm)
7300
Max. width of the wagon
2950
Max. height of the wagon
4485
Height of the coupler center line(mm)
880
Fixed wheel base of the bogie(mm)
1750
Diameter of the wheel(mm)
840
Track gauge(mm)
1435
Gauge
GB146.1
