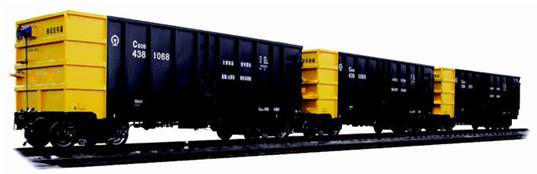

C80B Open Top Railway Wagon

Overview

C80B stainless steel coal railway car is overloaded CDB 20,000 tons of coal transportation train and develop special vehicles that can match Qinhuangdao three, four coal pier shuttle machine, dryer and three-car train positioning dumper achieve without uncoupling continuous dumping operations; and can adapt to the ring loading, straight straight out of the disintegration of loading and loading operations. Railway wagon Body materials using a new type of TCS stainless steel, the car developed such models fill the domestic blank.

The main features

Light weight, contained significant, can be adapted to 20,000 tons of heavy haul train marshalling requirements.

Sidewall bearing traditional gondola, flat floor structure, the structure is simple, reliable, easy maintenance overhaul.

C80B stainless steel side gondola coal and coal contact, end walls and floors and beams and other major pieces of sheet metal parts are made of stainless steel, TCS, has good corrosion resistance; can effectively extend the life of the vehicle.

Application reliability design concept, bolster, lower side door connecting nodes and other large parts of the detailed design stress, improve structural reliability.

Implementation of key parts of the life-cycle management, and quality assurance of tightened to achieve the cancellation minor, to extend the target plant depot repair cycle.

Bogie fitted with elastic shear rubber pad to achieve a resilient positioning; damping system uses a stable friction performance polymer wear plate, effectively improve the quality of vehicle operation and ensure a stable dynamic performance, solve the three bogie wear problems.

Application

The car currently has eight domestic enterprises in the technology transfer. As of July 2008, has cumulative production of 12,000, in order to ensure the Datong-Qinhuangdao railway transportation of coal to provide a guarantee on the equipment.

Model C80B stainless steel open top wagon is specially designed to transport the 20000 ton coal project , Qinhuangdao can match three, four coal pier shuttle machines, train positioning machines and three-car dumper, achieved without uncoupling continuous dumping operations; and can adapt to the ring loading, straight forward and straight out of the disintegration of loading equipment vehicle operations, and can adapt to thaw library requirements.

Loading capacity: 80t,

Tare weight: ≤20t,

Volume: 84.8 CBMm ,

Design speed: 100 km/h,

Specific Volume: 1.06m3/ t,

Length of change: 1.3,

minimum radius of curve when running: 145m.
