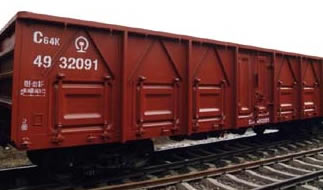

C64K open-top railway wagon
C64K open-top railway wagon
Main structure: the car consists of car body, braking system, coupler an buffer, bogie and so on. The car body, consists of under frame, side wall , end wall, car door and other components, is full of steel weld structure. The bogie is K2 type. The air braking system is type 120 control valve with 254mm-diameter integral spinning sealed type brake cylinder and ST2-250 bidirectional brake shoe clearance adjuster. Manpower braking equipment is NSW hand brake. The coupler and buffer is number 13 top operation coupler in C-level steel material and MT-3 buffer.
Main use: this wagon is used to load and transport coal, ore coke, building materails, mechanical equipment, woods and containers and bulk or case cargo.
Main technical parameters
Loading capacity(t) | 61 |
Tare weight(t) | <23 |
Min. radius of curvature negotiable(m) | 145 |
Volume(m3) | 73.3 |
Special volume(m3/t) | 1.2 |
Axle load(t) | 21 |
Load per meter of track(t/m) | <6.25 |
Length of car(mm) | 13430 |
Length between vehicle centers(mm) | 8700 |
Max. width of vehicle(mm) | 3242 |
Max height of vehicle(mm) | 3149 |
Fixed wheel base(mm) | 1750 |
Commercial operation speed(km/h) | 120 |
