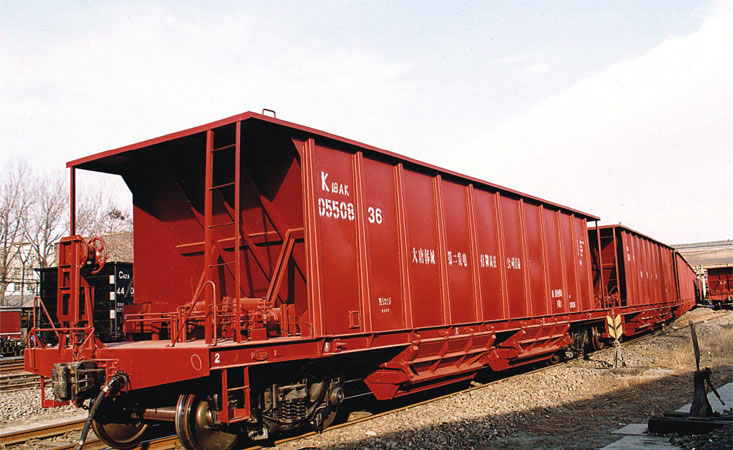

K18BK ore hopper wagon
K18BK ore hopper wagon
This car can be used to load and transport powdered ore, coal and other powdered cargo for the onsite usage with receiving pit transportation device underground. It can be unloaded by air or manually.
Main technical parameters
| Loading capacity(t) | 60
|
| Tare weight(t) | 24
|
| Capacity(m3) | 60
|
| Vehicle length(mm) | 14730
|
| Track gauge(mm) | 1435
|
| Axle load(t) | 21 |
| Commercial operation speed(km/h) | 120 |
| Min. radius pf curvature negotiable(m) | 145 |
| Transmission method | Doublestage trasmission; top loacking mechanism
|
| Unloading method | Air, manual, dumper |
| Loading and unloading method | Up loading and down loading |
| Coupler | C level steel |
| Coupler yoke | C level steel |
| Buffer | MT-3 type |
| Control valve | 120 type |
| Brake cylinder | Φ254 integral spinning sealed |
| Brake shoe slack adjuster | ST2-250 |
| Type od bogie | K2 |
